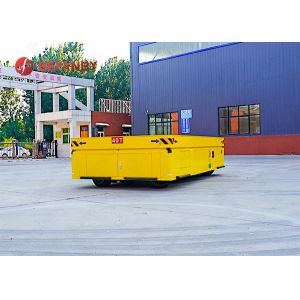

Customized Safety Sensors Control AGV For Injection Mould Handling
The 40T trackless transport vehicle is an intelligent material
handling device designed for heavy-duty material transportation,
boasting powerful load-bearing capacity and high-precision control
performance. The entire vehicle adopts a high-strength steel
splicing structure design, with a load-bearing capacity of up to 40
tons. It can stably transport large steel components, equipment
parts, molds, and other heavy-duty materials, and is widely used in
metallurgy, machinery manufacturing, energy equipment, port
terminals, and warehousing logistics.
2019 China steerable battery powered material handling trackless
electric transfer cart
The features as following:
- The transfer cart is battery powered, they represent the best
solution for all those appliances with delicate handling problems
in limited places.(360 degree turning flexibly)
- The trackless transfer cart is very flexible since it can move
freely around the plant as indoor as outdoor.
- It is equipped with non-marking wheels to avoid any mark on
floor.(Imported PU wheel or customized)
- Easy operation make transfer cart perfect to meet the most
important requirements: where space is very limited and paths are
strictly constrained.
Remark: Dimensions,capacity, loading platform superstructure, speed and
many others features can be customized as per client request.
Technical Parameter
| Model | BWP-10t | BWP-20t | BWP-40t | BWP-60t | BWP-80t | BWP-100T |
| Rated Load(t) | 10 | 20 | 40 | 60 | 80 | 100 |
| Table size(mm) | Length(L) | 2300 | 2400 | 5000 | 5600 | 6500 | 6600 |
| Width(W) | 2000 | 2200 | 2500 | 2500 | 2800 | 3300 |
| Height(H) | 550 | 600 | 800 | 850 | 950 | 1200 |
| Wheel Base(mm) | 1650 | 1650 | 2000 | 1800 | 1950 | 2000 |
| Axle Base(mm) | 1700 | 1850 | 3600 | 2900 | 3500 | 4000 |
| Wheel Diameter(mm) | 350 | 400 | 500 | 600 | 600 | 600 |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 6 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 2*2.2 | 2*3.5 | 2*6.3 | 2*10 | 30 | 40 |
| Battery Capacity(Ah) | 250 | 330 | 440 | 600 | 800 | 1000 |
| Battery Voltage(v) | 48 | 48 | 72 | 72 | 72 | 72 |
| Max Wheel Load(kn) | 42.6 | 77.7 | 142.8 | 221.4 | 185 | 190 |
| Reference Weight | 4.2 | 5.9 | 7.6 | 10.8 | 14.6 | 26.8 |
Navigation methods
The vehicle is equipped with an intelligent AGV control system,
enabling remote operation and precise path control. The system
supports multiple navigation methods, including magnetic strip
navigation, laser navigation, inertial navigation, and visual
navigation, allowing for flexible selection based on different
working conditions and workshop layouts to ensure operational
stability and high precision.
Brief introduction----BEFANBY'S Advantage
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a
collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 40 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
Brief introduction----BEFANBY'S Certificate
Our customers
Attend the trade fair every year
Brief introduction
You can copy the following options and click here to select your
specific requirement for the transfer cart to send us. And then the
proper solution and price will be sent to you.
1. The load capacity of the transfer cart is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer
the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our
customers
- During the warranty period, if our products can't work normally, we
can support you repair technology or replace relevant parts for you
within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from
beginning to end. Value the reputation and Preserve the image of
our company.
Product Tap: Steerable Transfer Cart, Motorized Transfer Cart
